Small Arch Bridge/Cattle Creep (BK29)

This versatile pack could be used in a number of ways, either as a cattle creep or culvert in a standard gauge railway embankment, or as an over bridge on a narrow gauge layout. The resin is easily worked with common modelling tools and more adventurous modellers may spot opportunities for modification or 'Kit bashing' to suit their own needs.

This set of detailed cast resin components has been produced from my own hand made masters, featuring individually textured stonework. The parts assemble quickly using superglue or general purpose adhesive to create a single bridge structure with a footprint of approx. 195mm x 130mm (excluding wing walls). The wing walls as shown fitted to the display model project a further 100mm each way from the arch face. The arch span itself is 75mm wide. The upper deck will comfortably accommodate a single track standard gauge railway, as determined by the abutment castings which are 118mm wide as supplied.

The parts are designed to clad around a suitable internal supporting structure to carry the weight of the upper road way or railway. It is suggested that the arch lining be formed to fit using textured plastic card or similar. (it is not practical to produce the arch lining in cast resin).

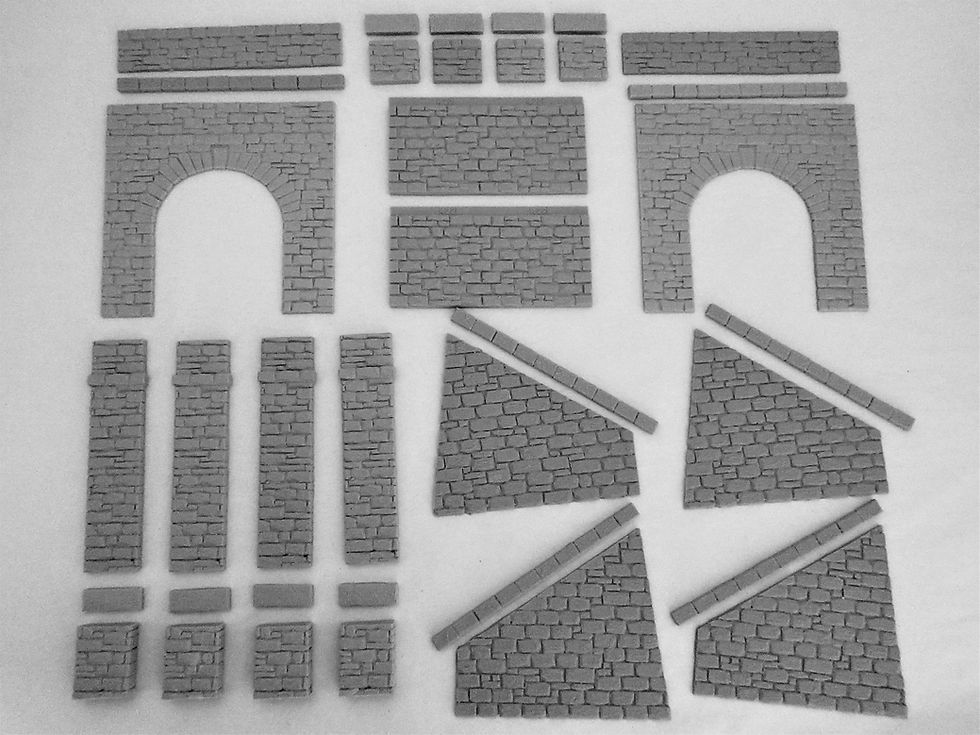

The photographs show the parts you will receive plus some images of a single test built sample to show how a finished model could look.

Parts included: Front arch face (x2) Stone side pillars / buttresses (x4), abutment walls (x2), internal parapet wall (x2) Internal pillar moulding (x4), pillar capping stone (x4), Parapet capping strip (x2), Wing walls & capping (x4), Wing wall end pillar & capping (x4)

This is a scratch aid kit and it is assumed that the builder will have some experience with scratch building model structures. Construction notes are included and further advice is available on request.
